Product Overview

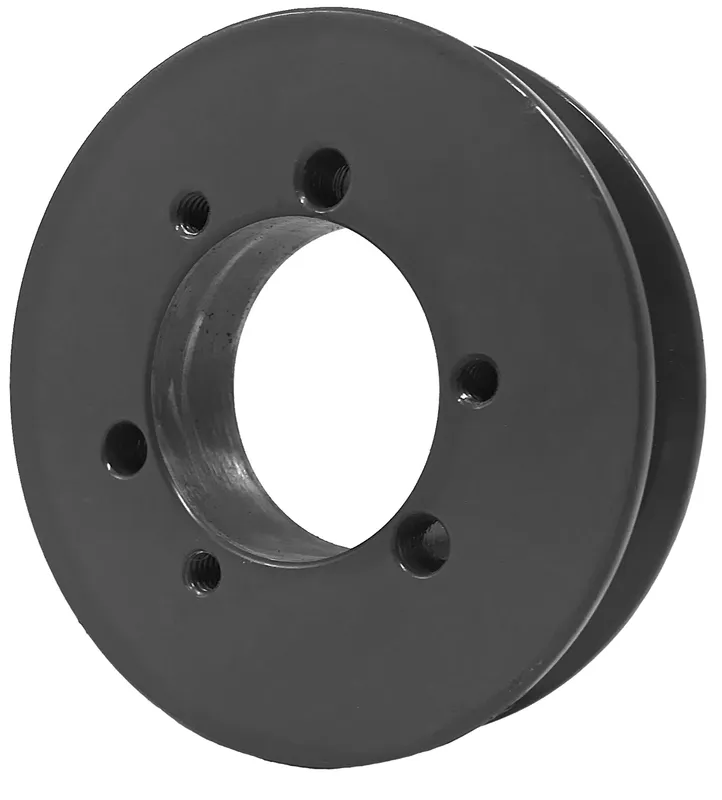

This 1B36SH sheave features one groove, is 3.95" in diameter, and is designed to use an SH bushing. QD (quick detachable) style sheaves offer a wider selection of bore sizes versus a standard "fixed" bore style sheave. Also because they are a two-component part if one component fails the entire part doesn't need to be replaced. All of our sheaves are manufactured out of extremely durable cast iron, are dynamically balanced at the factory, and are phosphated and then painted for corrosion resistance.
Features
- Bushing Type: SH
- Bore Range: 1/2" - 1-5/8"
- Type: D
- Pitch Diameter (B/ 5L): 3.6"
- Pitch Diameter (A/ 4L): 3.2"
- Outside Diameter (O.D.): 3.95"
- Dimension (E): 19/32"
- Dimension (F): 7/8"
- Dimension (L): 1-5/16"
- Dimension (M): 5/32"
- Sheave Weight: 2.2 LBS
