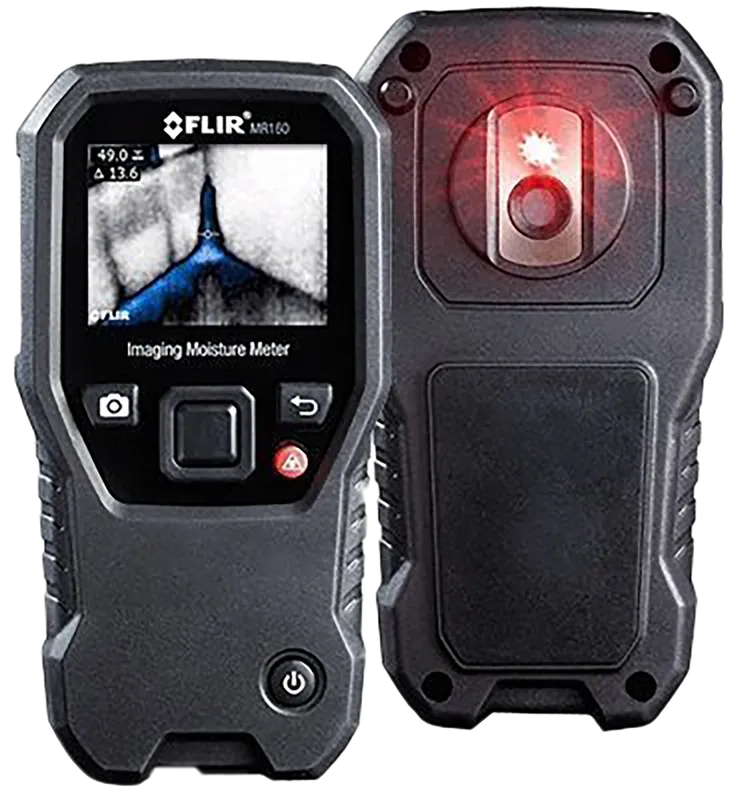

FLIR Imaging Moisture Meter with IGM MR160

main product photo
Out of Stock
Item Temporarily Out of Stock
We are working hard to re-stock inventory of this item. Place your order, and we’ll email you when we have an estimated delivery date. You won’t be charged until the item ships.

Product Overview

Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box or as the perfect complement to any high-resolution thermal camera you already own.

TROUBLESHOOT QUICKLY
Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements.

IDENTIFY AND VERIFY MOISTURE
Use the built-in thermal image camera to locate areas of moisture. Verify the moisture level using pin and pinless moisture measurement.

PORTABLE, TOUGH, DURABLE
Rugged design, small form factor, and internal rechargeable battery for convenience to carry with you.

Features

  • Agency Approvals:  FCC class B, CE, UL
  • Dimensions (H x W x L):  QVGA (320 x 240 pixel) 2.3" 64k color TFT
  • Laser Orientation:  Single laser pointer to center of thermal image
  • Packaging Size
    12.1 cm x 14 cm x 33.1 cm
  • Warranty:  2 Yr Product, 10 Yr Thermal detector
  • Drop test:  9.8’ (3m)
  • Image Display:  Color moisture alert
  • Minimum Focus Distance:  10cm (4"
  • Spectral Responsexv8–14µm
  • Thermal Image Resolutionxv4800 pixels (80 × 60)
  • Thermal Imaging Detector:  FLIR Lepton® microbolometer
  • Field of View [W x H]:  51° × 38°
  • Image Calibration:  Automatic
  • Image Frame Rate:  9 Hz
  • Measurement Resolution:  0.1
  • Pin Moisture Groups:  9 material groups
  • Pin Moisture via Ext Probe Range [Accuracy]:  0–100% WME (± 5%)
  • Pinless Measurement Depth:  0.75" (19mm) Max
  • Pinless Moisture Range:  0–100 relative measurement
  • Response Time Pin Mode:  750ms
  • Response Time Pinless:  100ms
  • Thermal Sensitivity:  <0.15°C
  • Certification Standards:  EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser)
  • Battery:  3.7 V, 3000 mAh Li-ion rechargeable via micro USB
  • Power Requirements:  Integrated rechargeable battery
  • Battery power\Cont Run Time:  18 hours max
  • Battery power-Typical Usage:  4 work weeks
  • Saved Image File format:  BMP with measurement values overlaid
  • Stored Image Capacity:  9999 images

Features & Specifications
Brand FLIR
Vendor Manufacturing Number MR160
