In Stock Product Overview

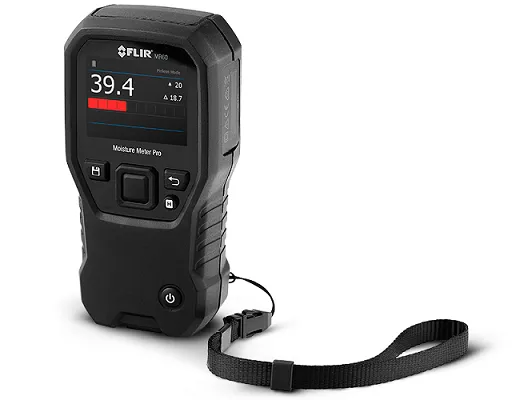

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
DESTRUCTIVE OR NON-DESTRUCTIVE MEASUREMENTS
Integrated pinless moisture sensor and an external pin probe included for resistive moisture content measurements in a variety of substrates.
CLEAR, ACCURATE READINGS
Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots to transfer and view via PC/USB.
SIMPLE TO USE AND CREATE REPORTS
Features an easy-to-read display and intuitive user interface. Save files and generate reports with free FLIR Tools software.
OVERVIEW
Agency Approvals
FCC Class B, CE, UL
Auto Power Off
Programmable: OFF, 1, 5, or 20 minutes
Internal Memory
4GB
IP Rating/Drop Test
IP54/3m (9.8 ft)
Packaging Size
51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.)
Typical Usage
4 work weeks
Warranty
2 years
ENVIRONMENTAL
Operating Humidity
≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F)
Operating Temperature
0~50 °C (32~122 °F)
Storage Humidity
90% RH
Storage Temperature
-10~60°C (14~140°F)
IMAGING & OPTICAL
Continuous Run Time
18 hours max
Display type (W x H)
QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display
MEASUREMENT & ANALYSIS
Measurement Resolution
0.1
Pinless Moisture Range
0–100 relative measurement
Response Time Pin Mode
750 ms
Response Time Pinless
100 ms
Sample Rate
10Hz (approx., both modes)
Pin Moisture via Ext Probe Range
Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only)
Pinless Moisture Depth
1.9cm (0.75") maximum
OTHER
Certification Standards
EN61326 (EMC), EN61010 (Battery + Charger)
POWER
Battery
3.7 V, 3000mAh Li-ion rechargeable via micro USB
Power Adapter
100–240 V input/ 5 V 1A output
Power Requirements
Integrated rechargeable battery
SHIPPING INFORMATION
Includes
MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card
STORAGE MEDIA
Saved Image File format
Bitmap (.bmp) with measurement values overlaid
Stored Data File Format
Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included.
Stored Image Capacity
9999 images
Features
- Impact Pin Moisture Probe
- Wall Cavity Probe
- Replacement RH Probe (humistick)
- Hammer Probe Kit MR07
Features & Specifications
| Brand | FLIR |
|---|---|
| Vendor Manufacturing Number | MR60 |
