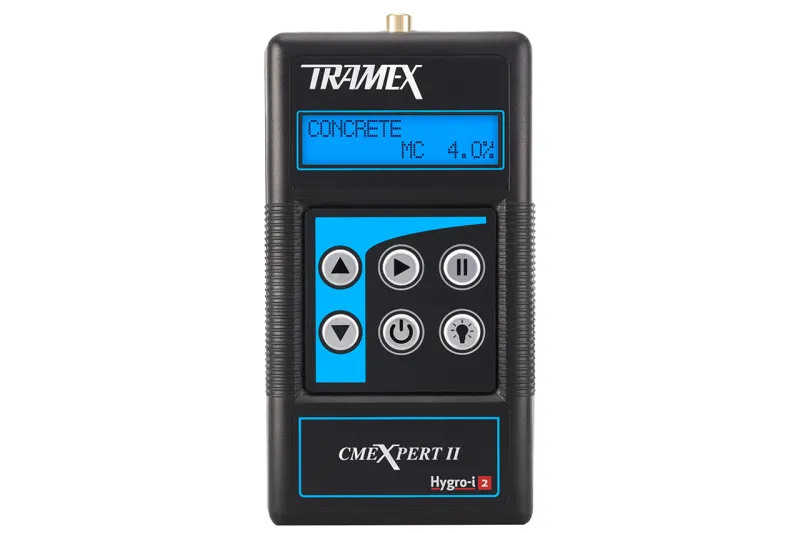

Tramex CMEXpert II Digital Concrete Moisture Meter

The New Concrete Encounter CMEXpert II is a digital display version of the Tramex Concrete Encounter CME4 hand-held electronic impedance moisture meter. It operates on the principle of non-destructive impedance measurement. Parallel co-planar electrodes are mounted on the base which, during operation, transmit a low-frequency signal into the concrete floor. To carry out moisture tests simply brush any dust from a smooth area of concrete and also from electrodes, switch on the CMEX and hold to the surface to read the percentage moisture content. There is no surface damage and no waiting. Flooring Manufacturers Recommended.

RELATIVE HUMIDITY (RH) PROBE Hygrometer mode

When the Tramex RH Probe is plugged into the CMEXpert, it automatically changes to Hygrometer Mode. The Tramex RH Probe provides the ideal solution for measurements of ambient Relative Humidity, Temperature, and Dew-point conditions within the building structure and in structural materials such as concrete flooring, walls, etc. as well as the environmental conditions within the building or structure. Humidity readings are displayed in both percentage Relative Humidity (%RH) and mixing ratio (grains/lb or grams/kg). The solid-state capacitive sensor in the RH probe gives accurate, fast results, allowing testing of concrete slabs to ASTM F 2170 (Insitu Method), ASTM F 2420 (RH hood method), BS 5325 & BS 8203 standards. (RH probe not included)

WOOD MOISTURE PIN PROBE Pin-type resistance mode

PIN PROBE mode is extremely easy to use. Simply select the Pin Probe using the ® key on the CMEXpert instrument. Insert either the Tramex Hand Probe or Hammer Probe directly into the socket at the top of the instrument. The pin probe gives accurate readings in 0.1 % increments over the entire measurement range. Readings are displayed on the LCD of the CMEX. The Pin Probe offers a practical and accurate way of determining that wood is at the correct moisture level for its intended use, proving to be a vital tool for testing of structural lumber in the drying process, probing deep into wall cavities, good quality control of wood flooring and other wood applications.

Features

• Measures up to 6.9% Moisture Content in Concrete.
• Large clear backlit digital display.
• Hold function "freezes" meter reading when inspecting areas where the meter face is not visible.
• Attaches to a relative humidity Hygro-i® probe for in situ testing of concrete.
• 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment. (optional)
