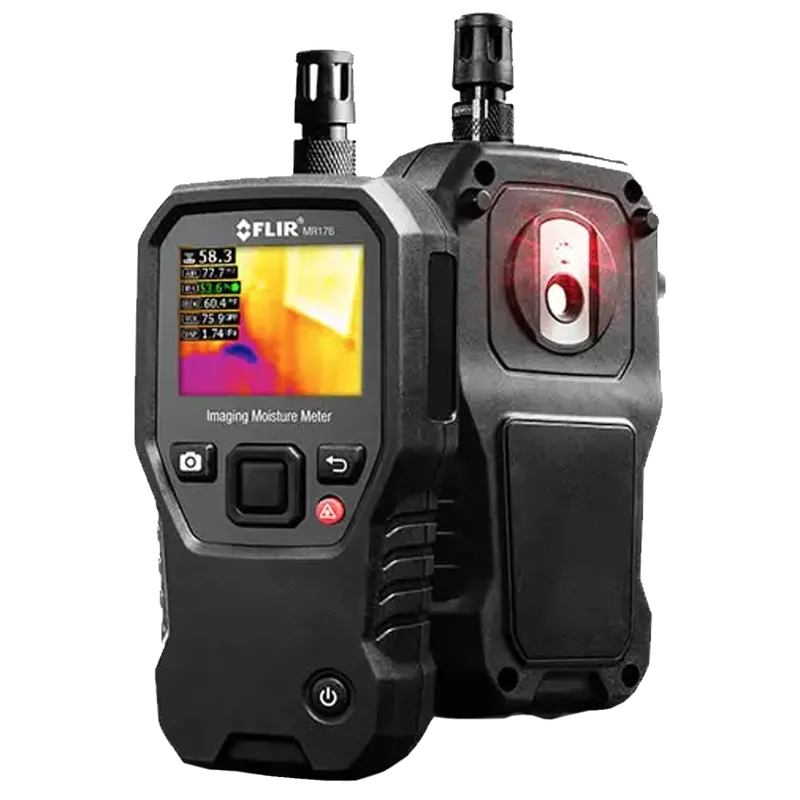

FLIR MR176 IGM Moisture Meter with Hygrometer

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot where moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.

Investigate Issues and Troubleshoot Quickly

IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation

Minimize Downtime

The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime.

Convenient, Flexible, Easy to Operate

Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software.

Features

• Thermal image palettes:  Iron, Rainbow, Ice, Greyscale
• Pin Moisture:  Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
• Pin Moisture Groups:  9 Material Groups
• Air Temperature:  Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
• Relative Humidity:  Range 0 to 100% / Basic Accuracy 2.5%RH
• Dew Point:  Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
• Display Type:  QVGA (320 x 240 pixel) 2.3" color TFT graphical display
• Field of View [W x H]:  51° × 38°
• Gallery:  17540
• Image Update Speed Frequency:  9Hz
• Imaging Detector:  FLIR Lepton microbolometer
• Laser Orientation:  Single laser pointer to center of thermal image
• Sensitivity:  <150mK
• Spectral Response:  8 to 14µm
• Thermal image minimum focus distance:  4" (10cm)
• Thermal image palettes:  Iron, Rainbow, Ice, Greyscale
• Thermal Image Resolution [W x H]:  4800 pixels (80 × 60)
• Air Temperature:  Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
• Detection Limit:  19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)
• Dew Point:  Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
• Image Calibration:  Automatic with manual lock scale option
• Measurement Resolution:  0.1
• Pin Moisture:  Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
• Pin Moisture Groups:  9 Material Groups
• Pinless Measurement Depth:  0.75" (19mm) Max
• Pinless Moisture Range:  0 to 100
• Response Time Pin Mode:  750ms
• Response Time Pinless:  100ms
• Saved Image File format:  BMP with measurement values overlaid
• Stored Image Capacity:  9999 images
• Battery: 3.7V, 3000mAh Li-ion rechargeable via micro USB
• Continuous Run Time:  18 hours max
• Typical Usage:  4 work weeks
• Packaging Size:  33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)
• Agency Approvals: CE, FCC Class B, RCM
• Certification Standards:  EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
• Mixing Ratio:  Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)
• Relative Humidity:  Range 0 to 100% / Basic Accuracy 2.5%RH
• Vapor Pressure:  Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa
